| Retransmission | automatic, selection of the optimal route |
|---|---|
| Repeaters in the system | 8 |
| Retransmission levels | 1 |
| Power | 12V (VDC) |
| Battery backup | 2500 mAh battery, up to 36 hours |
| Radio frequency | ISM wireless interface with multiple channels: ITU region 1: 868.0...868.6 MHz (EU, UA), 869.0...869.4 (MA), 100 kHz bandwidth, 20 mW max, distance - up to 4800m (in open space); ITU region 3 (AU): 916.5...917 MHz, 100 kHz bandwidth, 20 mW max, distance to devices - up to 4800 m (in open space). |
| Communication | Two-way, encrypted, with sabotage (jamming) detection. The encryption key is 256 bits |
| Operating temperature range | -10°C ... +55°C |
| Permissible humidity | up to 75% |
| Environmental class | II (according to EN 50131-1) |
| Security grade | 2 |
| Dimensions | 167 х 120 х 25.4 mm |
| Case colour | white, black |
| Weight | 0.26 kg |
| Complete set | 1. U-Prox Extender; 2. 18650 battery (pre-installed); 3. Power supply unit; 4. Short user manual |

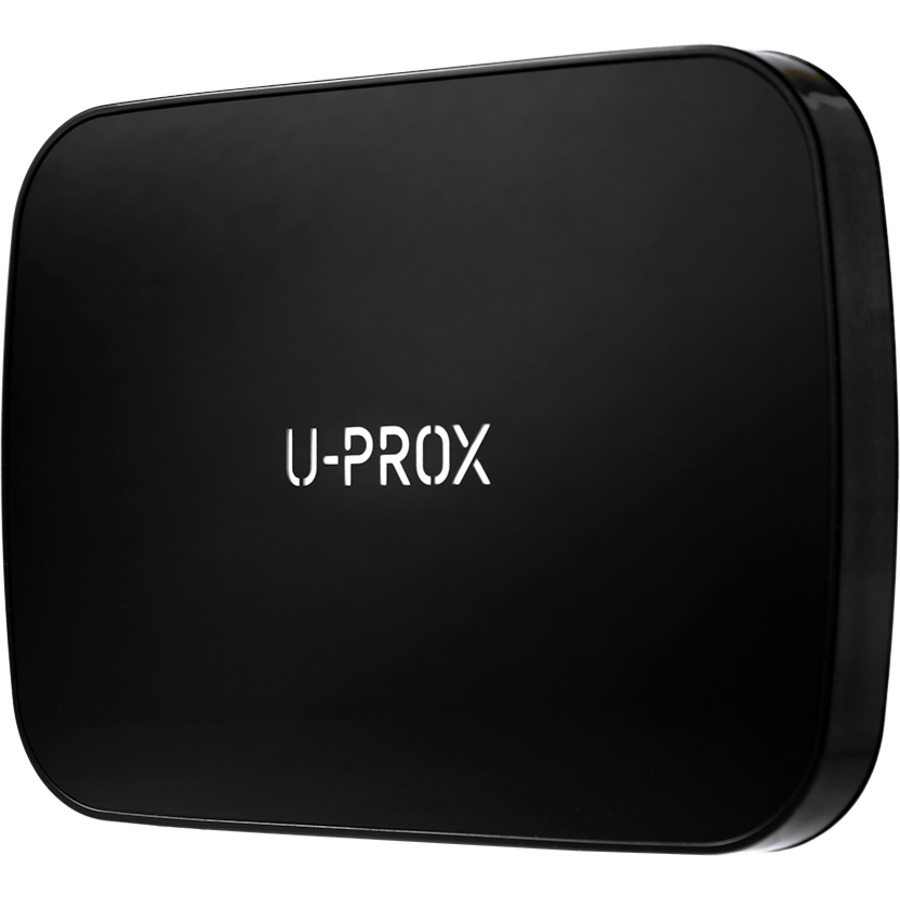

EXTENDER BL
U-PROX bezvadu signāla pastiprinātājs 868MHz
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
EXTENDER BL
U-PROX bezvadu signāla pastiprinātājs 868MHz
Kods: 012671
Noliktavā: Maz
138.23 € / gab
Preces rādītāji
Iekārtas parametri
Iekārtu kategorija
Radio paplašinātāji
Kopējie parametri
Materiāls
Plastikāts
Krāsa
Melna
Barošana
DC12V
Rezerves baterija 2500mAh
Rezerves baterija 2500mAh
Izmēri un svars
Garums (mm): 167
Platums (mm): 120
Augstums (mm): 25.4
Svars (g): 260
Platums (mm): 120
Augstums (mm): 25.4
Svars (g): 260
