| Inputs | 3 - ALM1, ALM2 (alarm) and TMP (tamper alarm) |
|---|---|
| Power output | 3V, 50mA max |
| Power | Three CR123A batteries, 1500 mAh. Up to 5 years of operation (with 2 wired detectors, 24 µA each in standby mode) |
| Radio frequency | ISM wireless interface with multiple channels: ITU Region 1: 868.0...868.6 MHz (EU, UA), 869.0...869.4 (MA), 100 kHz bandwidth, 20 mW max, distance - up to 4800m (in open space); ITU region 3 (AU): 916.5...917 MHz, 100 kHz bandwidth, 20 mW max, distance to devices - up to 4800 m (in open space). |
| Communication | Two-way, encrypted, with sabotage (jamming) detection. The encryption key is 256 bits |
| Operating temperature range | -10°C ... +55°C |
| Permissible humidity | up to 75% |
| Environmental class | II (according to EN 50131-1) |
| Security grade | 2 |
| Dimensions | 89.7 х 38.8 х 20.5 mm |
| Weight | 0.34 kg |
| Complete set | 1. U-Prox Wireport; 2. Three CR123A batteries (pre-installed); 3. Short user manual |

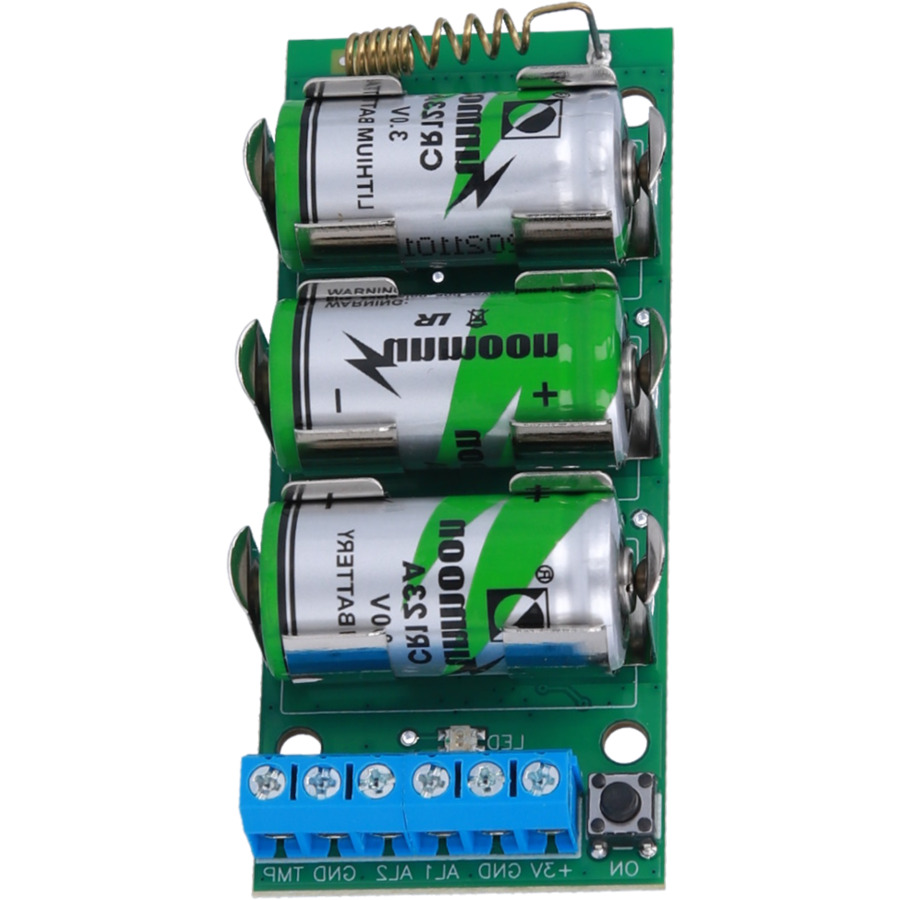

WIREPORT
U-PROX integrācijas modulis
-50%
WIREPORT
U-PROX integrācijas modulis
Kods: 012669
Noliktavā: Maz
25.51 € / gab
51.01 € / gab
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Preces rādītāji
Iekārtas parametri
Iekārtu kategorija
Integrācijas risinājumi
Kopējie parametri
Materiāls
Plastikāts
Krāsa
Balta
