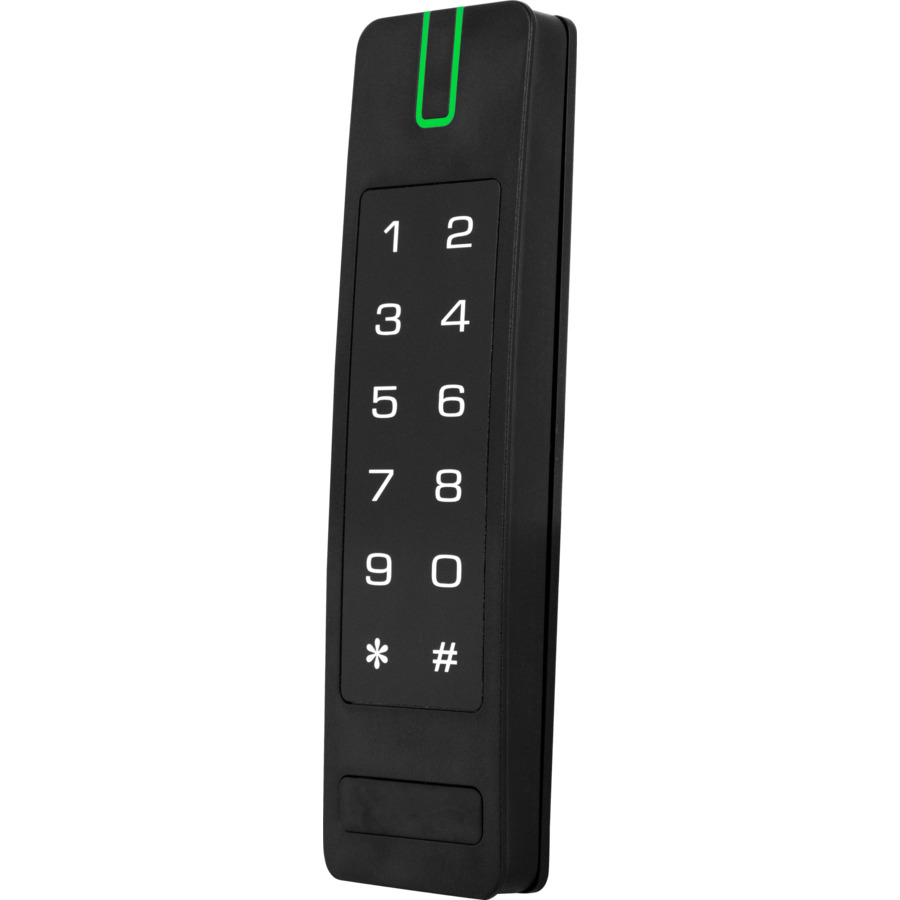

SE KEYPAD
U-PROX NFC, Mifare un RFID nolasītājs ar šifratoru IP65

-50%
SE KEYPAD ~ U-PROX NFC, Mifare un RFID nolasītājs ar šifratoru IP65

SE KEYPAD
U-PROX NFC, Mifare un RFID nolasītājs ar šifratoru IP65

Kods: 012700

Noliktavā: Maz
69.94 € / gab
139.88 € / gab
Saite uz ražotāja mājaslapu (atvērsies jaunā logā)
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Generation Second edition of U-PROX SmartLine Readers
Mifare®, 13.56 MHz ISO14443A, 4, 7, 10 bytes UID:
Mifare®Classic 1K/4K
Mifare®Standard
Mifare®Ultralight
Mifare®Hi-Memory
Mifare® Plus S 2K
Mifare® Plus S 4K
Mifare® Plus SE 1K
Mifare® Plus X 2K
Mifare®Plus X 4K
Mifare®Plus EV1 2K
Mifare® Plus EV1 4K
Mifare® DESfire
Mifare® DESfire EV1
Mifare® DESfire EV2
NFC, 13.56 MHz U-PROX ID (Android only)
Payment cards PayPass
PayWave
Cards in Apple Wallet
Cards in Google Wallet
RFID, 125 kHz ASK
FSK
2.4 GHz mobile ID U-PROX ID
U-PROX Tag
U-PROX Auto Tag
Read range NFC, Mifare and RFID 125 kHz - up to 5 cm,
2.4 GHz mobile ID - adjustable 10 cm - 15 m
Keypad Wireless keypad
Power +9...+15 VDC, consumption < 90 mA
Interfaces Wiegand Auto, 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits,
RS-232,
TouchMemory,
OSDP v 2.2
Keycodes Pack mode (after the ‘#’ key press),
26 bit mode,
digit-by-digit 4 bits per symbol,
digit-by-digit 6 bits per symbol,
digit-by-digit 8 bits per symbol,
dec packing with facility code substitute,
hex with facility code substitute,
Wiring and distance 8 wire cable:
TouchMemory - up to 30 m,
Wiegand - up to 150 m,
OSDP - up to 1000 m
Dimensions 42.8 х 157.8 х 16 mm
Weight 120 gramms
Case colour black
Case material ABS+PC plastic
Ambient IP65,
-40°С to +60°С
Firmware 30.хх - аll in one firmware
Update via NFC (Android only)
Proximity sensor IR detector
Complete set 1. U-PROX SE keypad;
2. Mounting kit;
3. Quick start guide
