IP401
U-PROX WiFi 2.4GHz piekļuves kontroles panelis 1 durvīm

-50%

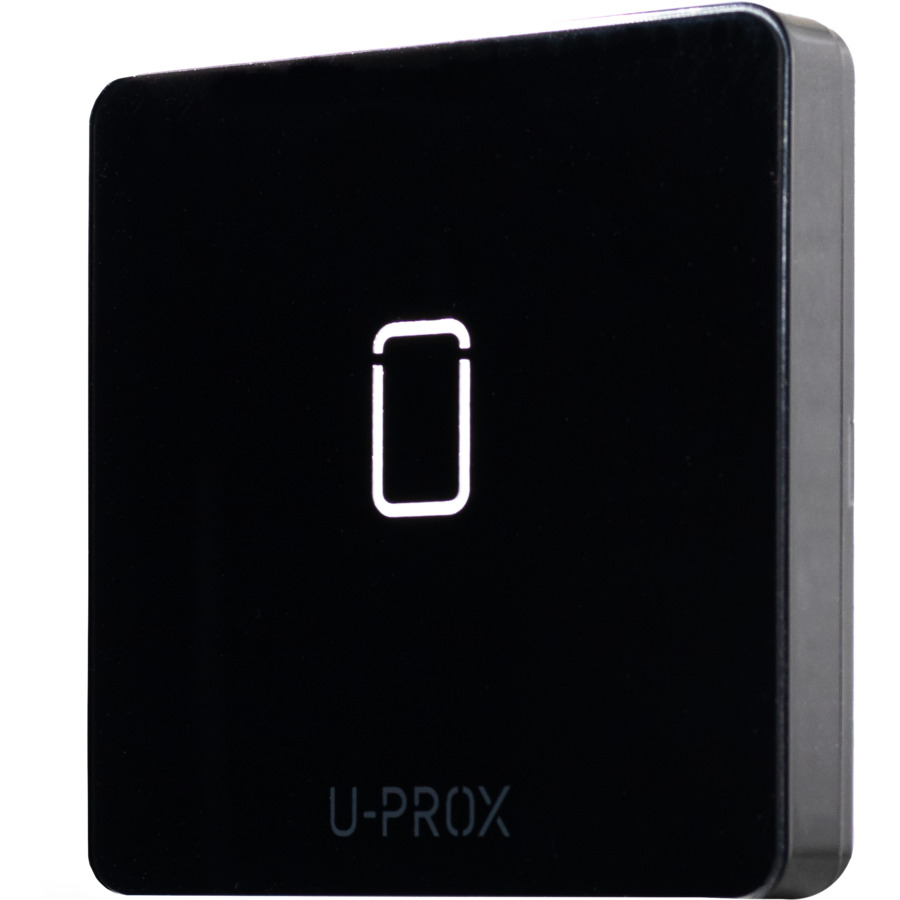

IP401 ~ U-PROX WiFi 2.4GHz piekļuves kontroles panelis 1 durvīm

IP401
U-PROX WiFi 2.4GHz piekļuves kontroles panelis 1 durvīm

Kods: 012702

Noliktavā: Maz
79.71 € / gab
159.42 € / gab
Saite uz ražotāja mājaslapu (atvērsies jaunā logā)
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
Inputs DC - Door Contact
RTE - Request to Exit button
Built-in RTE touch button
Outputs (Relays) NO, COM - solid state relay, 1 A @ 30 V
(inversion relay mode)
OUT - alarm output, OC 0.16 A @ 12 V
Reader OSDP: one reader , up to 1200 m
RS232: one reader U-PROX SE/SL, up to 10 m
Connection 2.4 GHz, 802.11b/g/n, Open/WPA/WPA2/WEP
Memory 10 000 user ID’s
20 000 events,
weekly schedules - 250,
time zones - 250,
holidays - 250
Power +10,8...+15 V, consommation < 100 mA @12V
Dimensions 84.3 х 84.3 х 14.5 mm
Weight 0.15 kg
Case colour black
Case material ABS+PC plastic, Gorilla Glass
Operating temperature range from -10°C to +55°C
Configuration With the U-PROX Config mobile app via Bluetooth
Complete set 1. U-PROX IP401;
2. Mounting kit;
3. Quick start guide
