| CONTROL PANEL | |
| Model | A6WG board |
| Communication with the user | WiFi for internet management with app / GSM for management with SMS and calls |
| Wi-Fi protocol | 802.11 b/g/n (2.4GHz) |
| GSM frequencies | 850 / 900 / 1800 / 1900MHz |
| Wi-Fi functions | Communication with router for internet access and management from app |
| GSM functions | Receive alerts via SMS and calls. Arm/Disarm by SMS and calls. Memory for 5 phone contacts and 5 contacts for SMS. Possibility of receiving and making calls from the panel through the telephone number of the SIM card, as in a conventional telephone. |
| Activation Options | Full arming / Disarming / Home mode arming / Panic SOS. Configurable entry and exit delay time for arming and disarming via keyboard and remote control. |
| Notifications | Alarm, SOS alert, tamper alert, status change, low battery, power loss and power recovery |
| Communication with peripherals | Wireless via RF radio on frequencies of 433 MHz and 868 MHz |
| radio range | Up to 80m in open space (transmit power 10dBm, antenna gain 2dBi) |
| wireless peripherals | Up to 60 detectors, 10 remote controls and 30 RFID tag keychains |
| Wired peripherals | 4 inputs for wired detectors / 12VDC 1A output to power the detectors |
| tag keychains | Reader with 125KHz RFID contactless technology |
| Anti-tampering security | Wall bracket with anti-opening sensor |
| Internal siren | 95dB |
| Backup battery | DC 7.4V / 600 mAh Lithium (up to 8 hours of autonomy) |
| Fabrication material | Methacrylate front and ABS plastic body |
| Feeding | Power supply AC 110~250V / DC12V, 1A, 12W; 50/60Hz |
| Temp. functioning | Indoor use (-10º C ~ 55º C) |
| Dimensions | 188 (W) x 125 (H) x 25 (F) mm |
| MAGNETIC CONTACT | |
| Model | NVS-D3D-U1 |
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| Battery | DC 3V CR2477 |
| Current draw | Sleep ≤ 10uA Alarm ≤ 15mA |
| Temp. functioning | -10º C ~ 55º C |
| PRESENCE DETECTOR | |
| Model | NVS-D1A |
| Technology | Volumetric PIR |
| Detection field | 8 m / 110º / Installation 2 m |
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| LED indication | Alarm, tamper, signal |
| Battery | DC 3V (2 AA LR6 1.5V batteries) |
| Current draw | Sleep ≤ 90uA Alarm ≤ 9.5mA |
| Temp. functioning | -10º C ~ 55º C |
| REMOTE CONTROL | |
| Model | NVS-RC2 |
| Operating modes | Armed, disarmed, partial armed and SOS |
| Frequency | 433 MHz |
| Transmission distance | ≤ 80m in open space |
| Battery | DC 3V CR2025 |
| Current draw | Transmission ≤ 7mA |
| Dimensions | 57x31x11 mm |
NVS-A6WG-U1

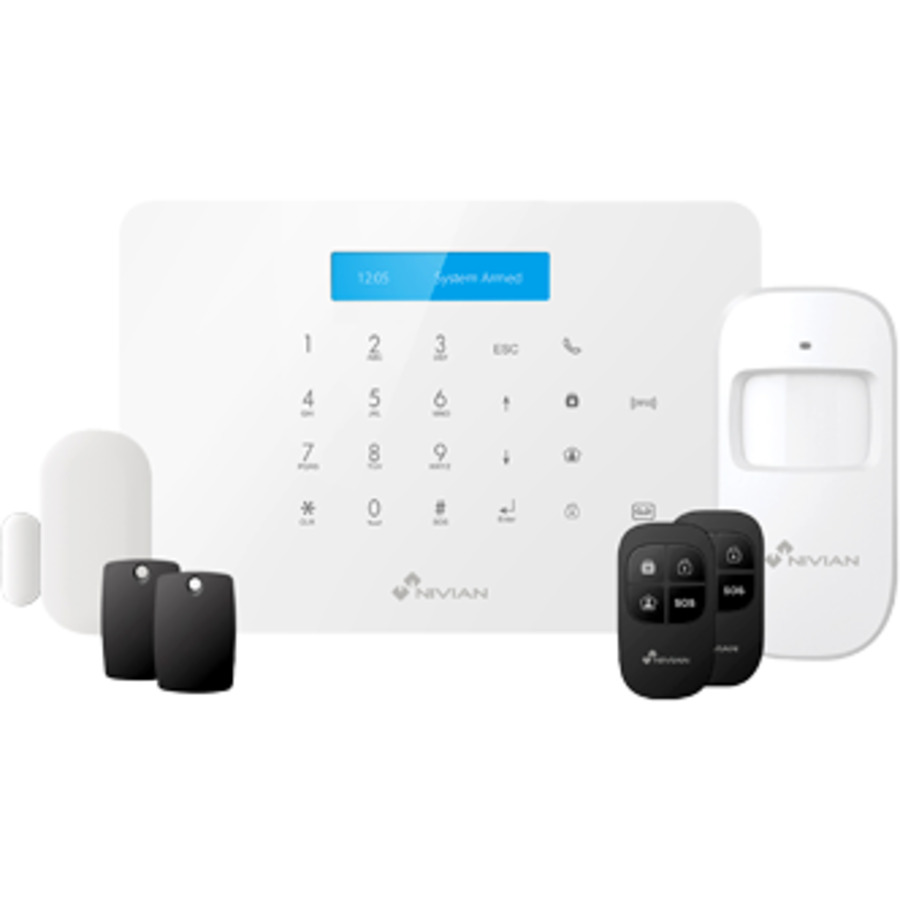

Nivian GSM/WiFi bezvadu apsardzes komplekts (Tuya APP)
NVS-A6WG-U1
Nivian GSM/WiFi bezvadu apsardzes komplekts (Tuya APP)
Kods: 011130
Noliktavā: Maz
136.26 € / gab
Attēlam ir informatīva nozīme. Tā reālais izskats var nedaudz atšķirties.
